Ceiling Fan Wiring Help: Understanding the Basics
Ceiling fans are a popular addition to homes and offices because of their ability to circulate air and provide comfort to the occupants. But, like any electrical device, they need proper installation and wiring to function correctly. If your ceiling fan and light are not working correctly or at all, there are a few steps you can take to troubleshoot the problem.
To begin with, ensure that the ceiling fan unit is securely attached to the ceiling and that the electrical box supporting it is rated for the fan's size and weight. Once you have established this, you may proceed with the wiring process.
How to Connect the Wires to a Ceiling Fan
The wiring process of a ceiling fan involves three components: the fan, the light, and the switch. These three components have different wires that need to be connected correctly for the fan to operate safely.

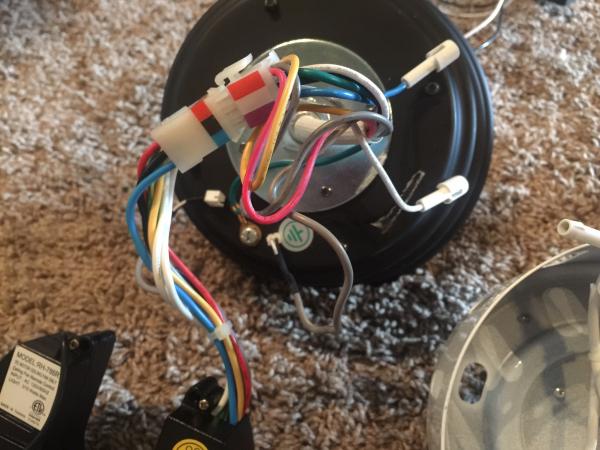

The fan usually has three wires: black for powering the fan motor, white for neutral, and green for grounding. The light also has three wires: black for powering the light, white for neutral, and green for grounding. Lastly, the switch has four wires: black for power, white for neutral, red for the fan, and blue for the light.
The first step in wiring your ceiling fan is to turn off the power at the circuit breaker or fuse box.
Next, you'll want to connect the house wiring to the fan wiring. Begin by connecting the black wire from the house wiring to the black wire from the fan motor. Then connect the white wire from the house wiring to the white wire from the fan motor. Lastly, connect the green wire from the fan motor to the green grounding wire from the house wiring.
To connect the light kit, attach the black wire from the light kit to the black wire from the fan motor, then attach the white wire from the light kit to the white wire from the fan motor. The light kit's green wire will be connected directly to the fan motor's green grounding wire.

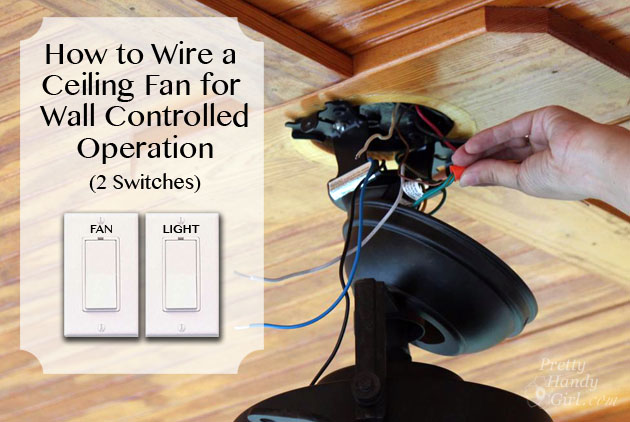

Last, the switch wires can be connected. Connect the power source, i.e., black wire, from the switch to the black wire from both the fan and the light kit. Connect the white neutral wire from the switch to the neutral wire from both the fan and the light kit. Lastly, connect the red wire from the switch to the fan motor's blue wire and complete the installation.
Ceiling Fan Power and Switches
There are some scenarios where ceiling fan wiring help is needed even after proper wiring procedures.
One issue might be the power supply. If the fan and light do not turn on even after correctly wiring the electrical components, it could be an issue with the power supply. Check if the circuit breaker has tripped or if the fuse has blown, then switch the circuit breaker or replace the fuse.
Another is dim or flickering lights. This is a common problem when installing ceiling fans, particularly when putting in LED lights. The issue is usually with the dimmer or switch being incompatible with the light kit, so consider purchasing a compatible switch or dimmer to ensure the light functions correctly.
Lastly, the fan not running at all. If the fan does not turn on even after being correctly wired, it could be an internal issue with the fan itself. The issue could be with the internal wiring, a faulty capacitor, or a burnt-out motor. In such situations, contacting a professional electrician may be necessary.
Conclusion
Wiring and installing a ceiling fan is an interesting and affordable way to upgrade your home or office's comfort and style. Understanding the components involved and becoming familiar with the wiring processes can make the task an easy one. Properly wiring the black, white, and green wires, as well as the switch components, will ensure a safe and efficient installation. However, should problems occur, it is always best to enlist the help of a professional electrician to avoid any safety hazards.
